Low-range sensitivity
Piezoresistive sensing supports differential ranges down to 10 mbar for filter loading, air movement, cleanroom pressure, and other small-pressure applications.

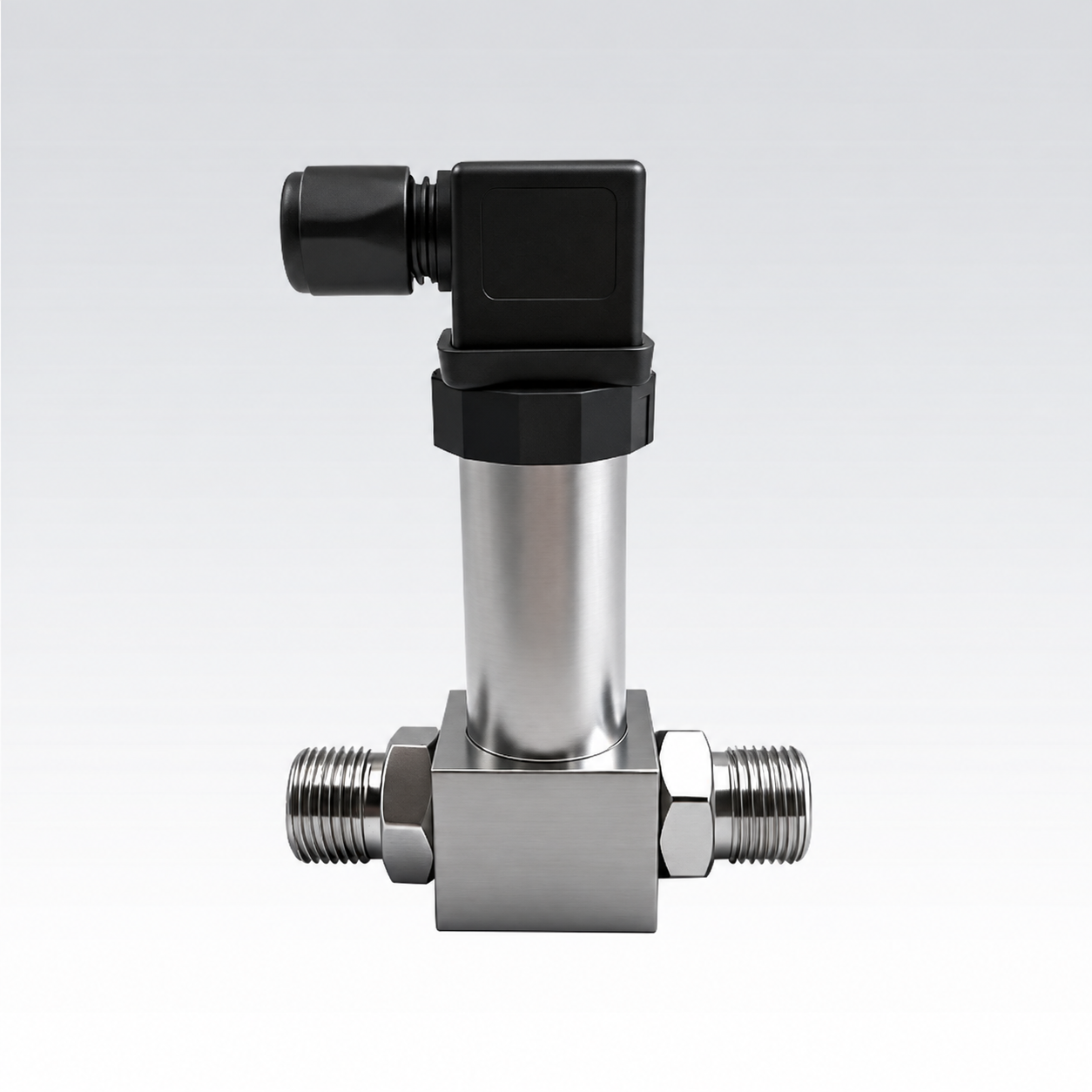

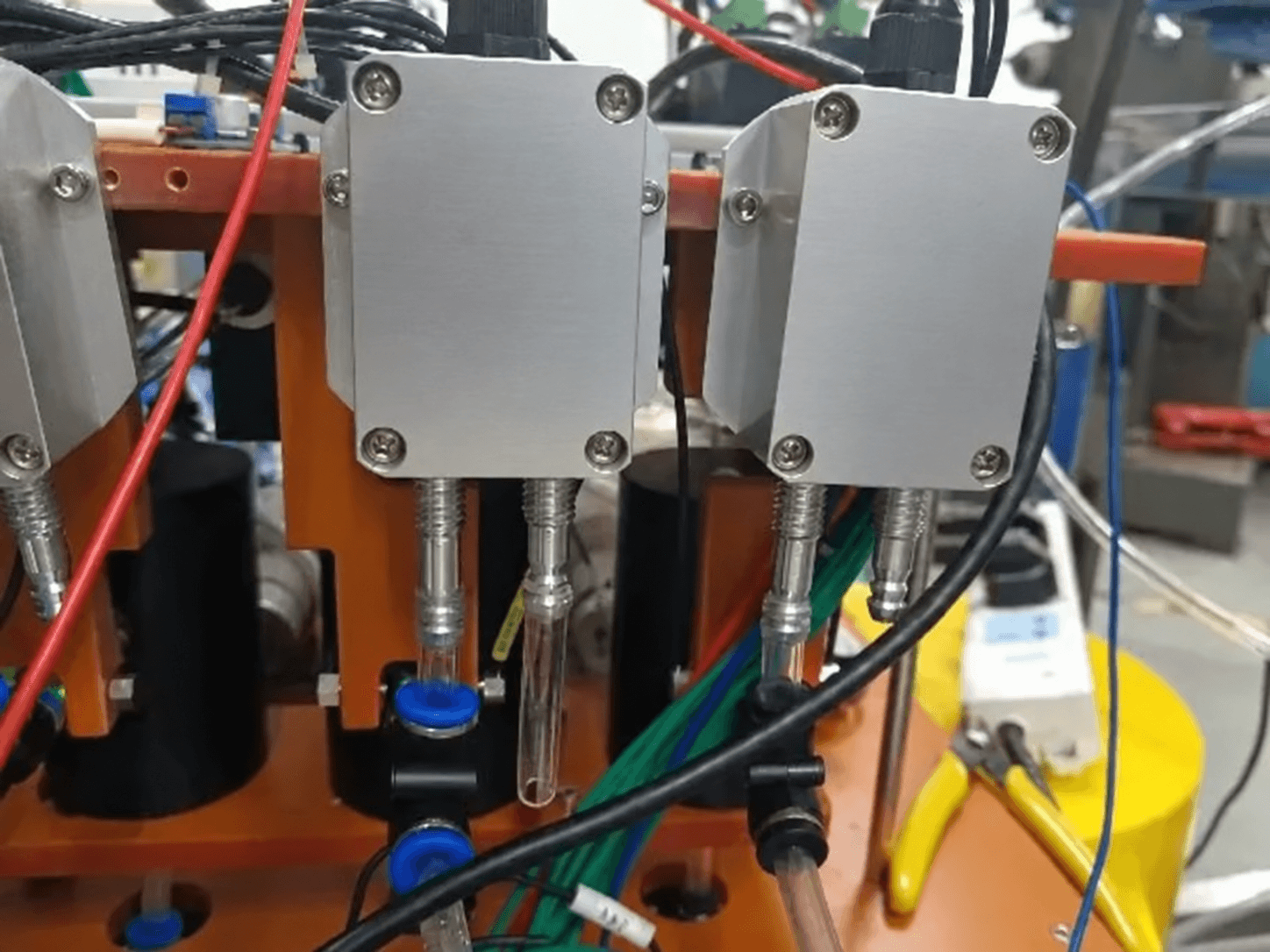

FGP230 / Compact differential pressure transmitter
Small pressure differences. Clear machine feedback.
A compact piezoresistive transmitter for measuring differential pressure across filters, air systems, neutral-gas circuits, and compatible liquid processes.
- Minimum range
- 10 mbar
- Best accuracy
- ±0.075% FS
- Signal options
- 4–20 mA / voltage
- Protection
- IP65 / IP67
Compact differential measurement
Resolve the pressure change before it becomes a process problem.
The FGP230 converts the difference between its high- and low-pressure ports into a stable control signal for PLCs, building controls, and monitoring systems.
02
Stainless construction
A welded stainless housing and 316L isolated diaphragm support durable service with air, neutral gases, and compatible non-corrosive liquids.
03
Field-adjustable calibration
External zero and full-scale adjustment allows installation trimming without disassembling the transmitter housing.
04
Control-ready outputs
Choose two-wire 4–20 mA or three-wire voltage output to match the PLC, building control, or data-acquisition input.
Technical specification
Select the right configuration.
Published values represent the available FGP230 platform. Final range, accuracy, static-pressure limits, media compatibility, connection, and approvals should be confirmed for the selected configuration.
- Measurement type
- Differential pressure
- Pressure range
- Selected low-differential ranges down to 10 mbar; broader configurations through 3.5 MPa
- Accuracy classes
- ±0.5% FS standard; ±0.25%, ±0.1%, or ±0.075% FS options
- Output signals
- Two-wire 4–20 mA; three-wire 0–10 VDC or 0–5 VDC
- Power supply
- 9–36 VDC for 4–20 mA; 15–36 VDC for 0–10 V; 12–36 VDC for 0–5 V
- Static pressure
- Bidirectional withstand up to 5× rated range
- Medium temperature
- −20 °C to +85 °C standard
- Process connections

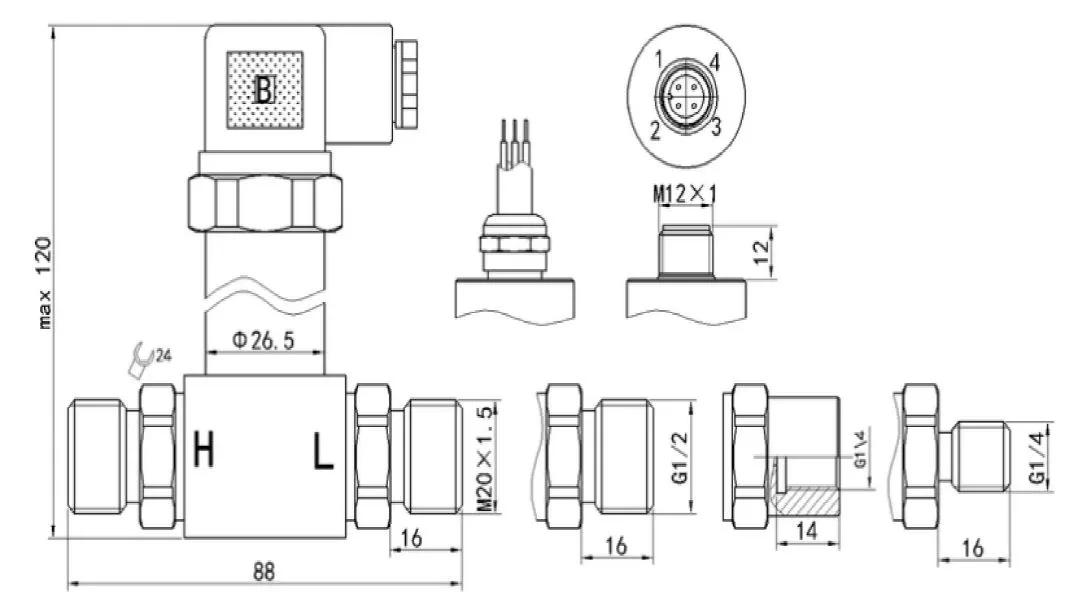

- M20 × 1.5, G1/4, 1/4 NPT, G1/2, or 1/2 NPT; male or selected female options
- Electrical connections
- DIN 43650 connector, M12 4-pin connector, or direct cable outlet
- Wetted diaphragm
- 316L stainless steel
- Long-term stability
- 0.2% full scale per year
- Natural frequency
- 5 kHz to 650 kHz, range-dependent
- Ingress protection
- IP65 with DIN connector; IP67 with M12 or cable
Configuration paths
Built around the machine, not a shelf number.
Differential range
Select full scale so the normal operating differential uses roughly 60–80% of the range while retaining margin for transients.
Port geometry
Match both high- and low-pressure ports to tubing, manifolds, or direct process connections and confirm sealing method.
Signal and connector
Choose 4–20 mA or voltage feedback with DIN, M12, or cable termination around the control hardware and enclosure rating.
Media and materials
Confirm air, neutral gas, or liquid compatibility and select the housing, diaphragm, and sealing materials for the process.
Ordering matrix
Build the configuration.
Choose one option at each position. The live string follows the supplied ordering sequence while replacing the source series name with FGP230.
Configuration preview
FGP230-K10-G1/4-MA-1D
Discussion shorthand only. Firelands will verify the released part number, range, compatibility, and approvals before quotation.
Email this configurationThe 2088 display housing is limited to 4–20 mA output in the supplied matrix.
Accuracy, approvals, special ranges, and cable length are confirmed separately during application review.
Application fit
Differential feedback for air, filtration, and process systems.
Use the high- and low-pressure ports to monitor restriction, airflow, vessel level, or the pressure relationship between two points in a system.
01HVAC duct and cleanroom pressure control
02Filter loading and clogging indication
03Boiler and flue-gas monitoring
04Pipeline and flow-element differential pressure
05Compatible liquid level measurement
06OEM air and neutral-gas systems
Start with the operating conditions
Define both pressure points before selecting the range.
Share the high- and low-side conditions, normal and maximum differential, static line pressure, medium, process ports, output, connector, accuracy target, and installation environment. Firelands will help define the FGP230 configuration.
