Diffused-silicon measurement
A high-precision diffused-silicon pressure core and compensation electronics support accurate liquid and gas pressure feedback.

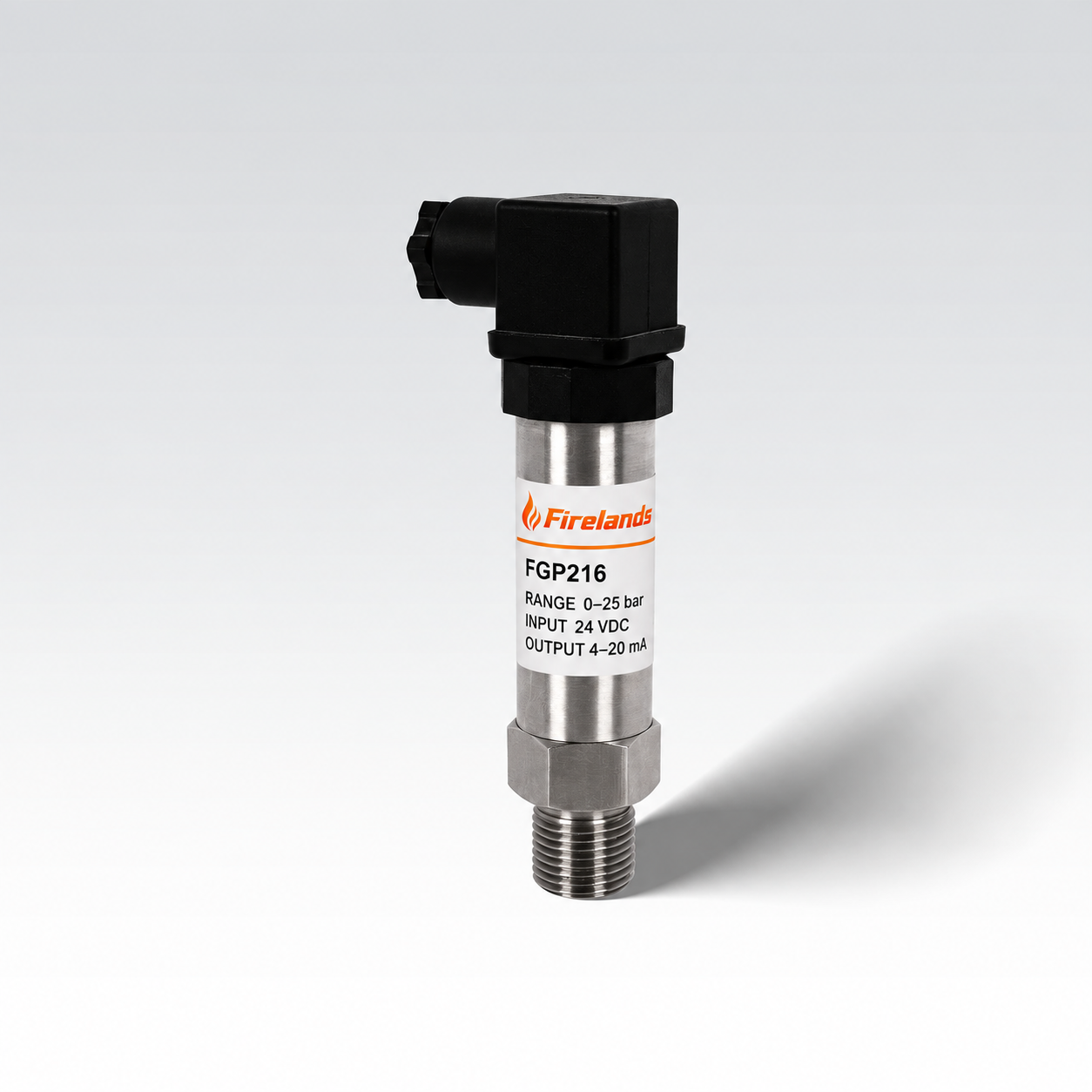

FGP216 / Standard silicon pressure transmitter
Hydraulic pressure sensing that fits the circuit.
A compact diffused-silicon pressure transmitter platform for accurate liquid and gas pressure feedback in hydraulic systems, industrial machinery, pumps, and process equipment.
- Pressure range
- −1 to 400 bar
- Accuracy
- ±0.25% or ±0.5% FS
- Signal options
- 4–20 mA / voltage
- Protection
- IP65
Compact, configurable, industrial
One platform. Multiple hydraulic pressure points.
The FGP216 converts gauge or absolute pressure into a standard current or voltage signal for PLCs, displays, data acquisition, and machine-control systems.
02
Broad pressure coverage
Configure vacuum service from −1 to 0 bar or positive-pressure ranges through 400 bar for pneumatic, hydraulic, pump, and process circuits.
03
Control-ready outputs
Choose 4–20 mA or voltage outputs to match the control hardware already designed into the machine.
04
Mechanical flexibility

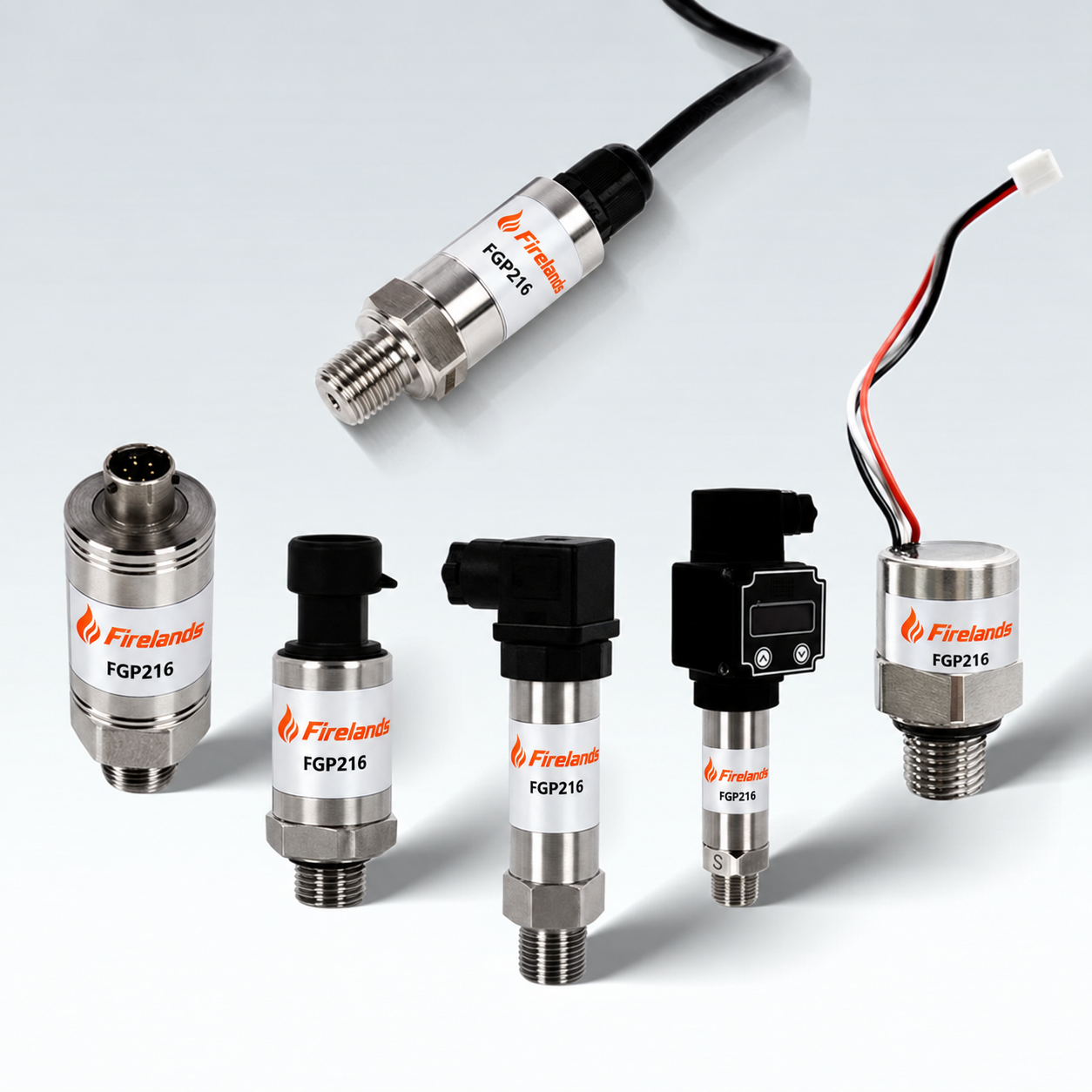

A compact stainless-steel housing with multiple process threads and electrical connectors supports new machine designs and retrofit work.
Technical specification
Select the right configuration.
Published values represent the available FGP216 platform. Final range, pressure reference, power supply, connection, and media compatibility should be confirmed for the selected configuration.
- Pressure type
- Gauge pressure or absolute pressure
- Available ranges
- −1–0 bar vacuum; positive-pressure ranges through 0–400 bar
- Accuracy classes
- ±0.5% full scale or ±0.25% full scale
- Output signals
- 4–20 mA, 0–10 VDC, 0–5 VDC, or 0.5–4.5 VDC
- Power supply
- 6.5–32 VDC, 10–32 VDC, 12–32 VDC, or regulated 5 VDC, depending on output
- Process connections
- G1/4, G1/2, 1/4 NPT, 1/2 NPT, M20 × 1.5, R1/4, or R1/2
- Electrical connections
- M12 connector, DIN-style connector, Packard connector, or waterproof cable connector
- Housing
- Compact stainless-steel construction
- Working temperature
- −20 °C to +80 °C
- Overload pressure
- 1.5 times rated pressure
- Response time
- ≤10 ms
- Long-term stability
- 0.2% full scale per year
- Ingress protection
- IP65
Configuration paths
Built around the machine, not a shelf number.
Pressure range
Size the vacuum or positive-pressure range around normal operation, transients, and the resolution the control system needs.
Process thread
Match new or existing ports with metric, G, R, NPT, or female connection choices.
Electrical signal
Select current or voltage feedback around the controller, cable run, and diagnostics strategy.
Connector and reference
Choose the connector and lead arrangement, then confirm gauge or absolute pressure reference for the application.
Ordering matrix
Build the configuration.
Choose one option at each position. The live configuration follows the supplied ordering sequence and uses the Firelands FGP216 series name.
Configuration preview
FGP216-G-B25-G1/4-MA-2D
Discussion shorthand only. Firelands will verify the released part number, range, compatibility, and approvals before quotation.
Email this configurationThe numeric range value follows the selected pressure unit in the configuration string.
Firelands will confirm power supply, media compatibility, wiring, cable length, and final released part number before quotation.
Application fit
Pressure feedback for real fluid-power equipment.
Use continuous pressure feedback to confirm machine state, protect components, identify abnormal conditions, and give the controller the signal it needs to act.
01Hydraulic power units
02Pump discharge and suction monitoring
03Accumulator and clamping circuits
04Lubrication systems
05Machine tools and presses
06OEM industrial machinery
Start with the operating conditions
Tell us where pressure matters in the machine.
Share the operating and peak pressure, pressure reference, media, process connection, electrical output, accuracy target, and installation environment. Firelands will help define the right FGP216 configuration.
