01
Multiple sensing elements
Configure Pt100, Cu50, or common K, E, J, and T thermocouple elements around the temperature range, response, and control-system requirements.
FGP100 / Industrial temperature transmitter
Temperature feedback built for the machine.
A configurable industrial temperature-transmitter platform combining RTD or thermocouple sensing with standard current and voltage outputs for PLCs, controls, and monitoring systems.
- Temperature range
- −50 to +300 °C
- Accuracy
- 0.2% / 0.3% / 0.5% FS
- Signal options
- 4–20 mA / voltage
- Protection
- IP67
Probe, transmitter, and signal in one assembly
A temperature platform shaped around the process.
The FGP100 converts an RTD or thermocouple measurement into a stable industrial signal while offering probe, process-connection, and electrical-connection choices for different equipment layouts.
02
Control-ready outputs
Choose two-wire 4–20 mA or three-wire voltage output for PLC inputs, remote displays, data acquisition, and machine controls.
03
Mechanical flexibility

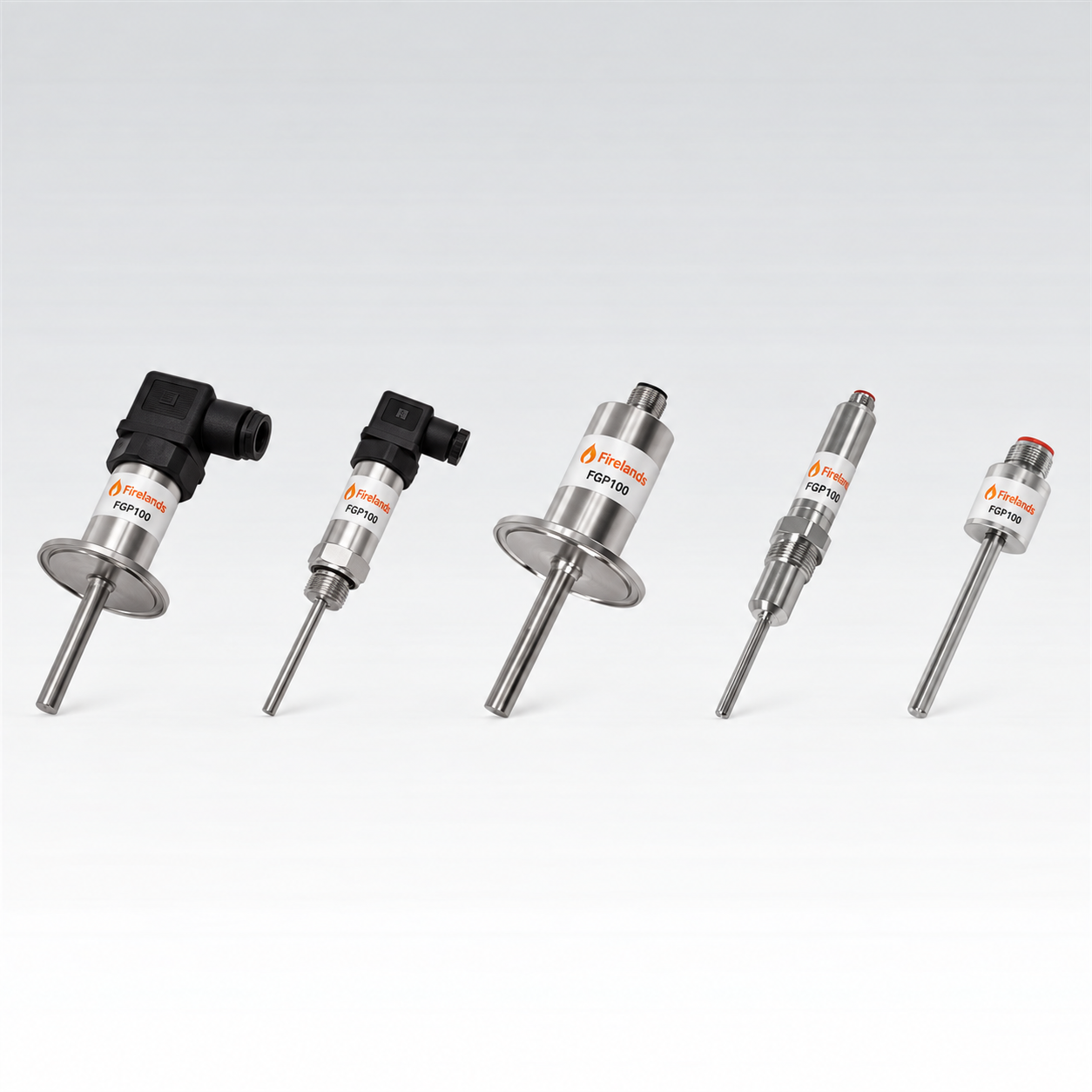

Threaded, sanitary, compact, and extended-probe constructions support tanks, piping, equipment housings, and OEM machine installations.
04
Industrial construction
A stainless-steel wetted assembly, armored construction options, and IP67 protection support vibration, pressure, and demanding plant environments.
Technical specification
Select the right configuration.
Published values represent the available FGP100 platform. Final sensing element, range, probe geometry, process connection, output, and media compatibility should be confirmed for the selected configuration.
- Temperature range
- −50 °C to +300 °C
- Sensing elements
- Pt100 or Cu50 RTD; K, E, J, or T thermocouple
- Accuracy classes
- 0.2%, 0.3%, or 0.5% full scale; Class A and Class 1/3 B RTD grades
- Output signals
- 4–20 mA, 0–10 VDC, 0–5 VDC, or 0.5–4.5 VDC
- Power supply
- 6.5–32 VDC, 10–32 VDC, 12–32 VDC, or regulated 5 VDC, depending on output
- Electrical connections
- M12, DIN-style, Packard, or waterproof cable connector
- Wetted material
- SUS316L stainless steel
- Overload pressure
- 1.5 times rated pressure
- Long-term stability
- 0.2% full scale per year
- Ingress protection
- IP67
Configuration paths
Built around the machine, not a shelf number.
Sensing element
Select Pt100, Cu50, or thermocouple input around temperature span, accuracy, response, and the receiving control hardware.
Probe geometry
Define diameter, insertion length, sheath construction, and tip style around the process and required response time.
Process connection
Choose threaded, sanitary, or application-specific mounting to fit tanks, lines, housings, and OEM equipment.
Output and connector
Match current or voltage output and electrical termination to the controller, cable routing, and enclosure requirements.
Application fit
Temperature feedback where heat changes the process.
Use the FGP100 to provide continuous temperature feedback for fluid systems, rotating equipment, heated processes, and OEM machinery where the control system needs a dependable electrical signal.
01Hydraulic reservoirs and lubrication systems
02Pumps, compressors, and gearboxes
03Chillers and cooling circuits
04Chemical and pharmaceutical processes
05Food and sanitary equipment
06Industrial and OEM machinery
Start with the operating conditions
Define the temperature point before selecting the probe.
Share the normal and maximum temperature, medium, insertion length, process connection, sensing element, output, electrical connection, and installation environment. Firelands will help define the right FGP100 configuration.
